Technical Resources

Guides, videos and technical information for fuel bladder selection, installation, filling and maintenance.

Use these resources to understand how to choose the right bladder, prepare your installation and follow basic safety recommendations before use.

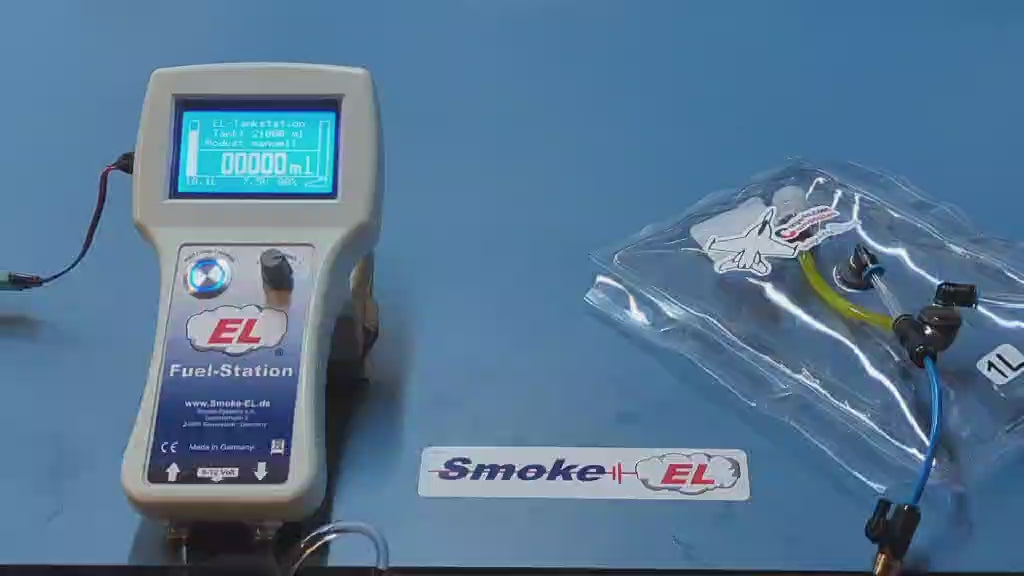

How to fill a fuel bladder

Watch how a fuel bladder can be filled using a filling pump and basic fuel system connections.

Always follow your aircraft fuel system requirements and check fittings, lines and bladder position before operation.

Technical guides

Find practical information about choosing, installing and using your fuel bladder system.

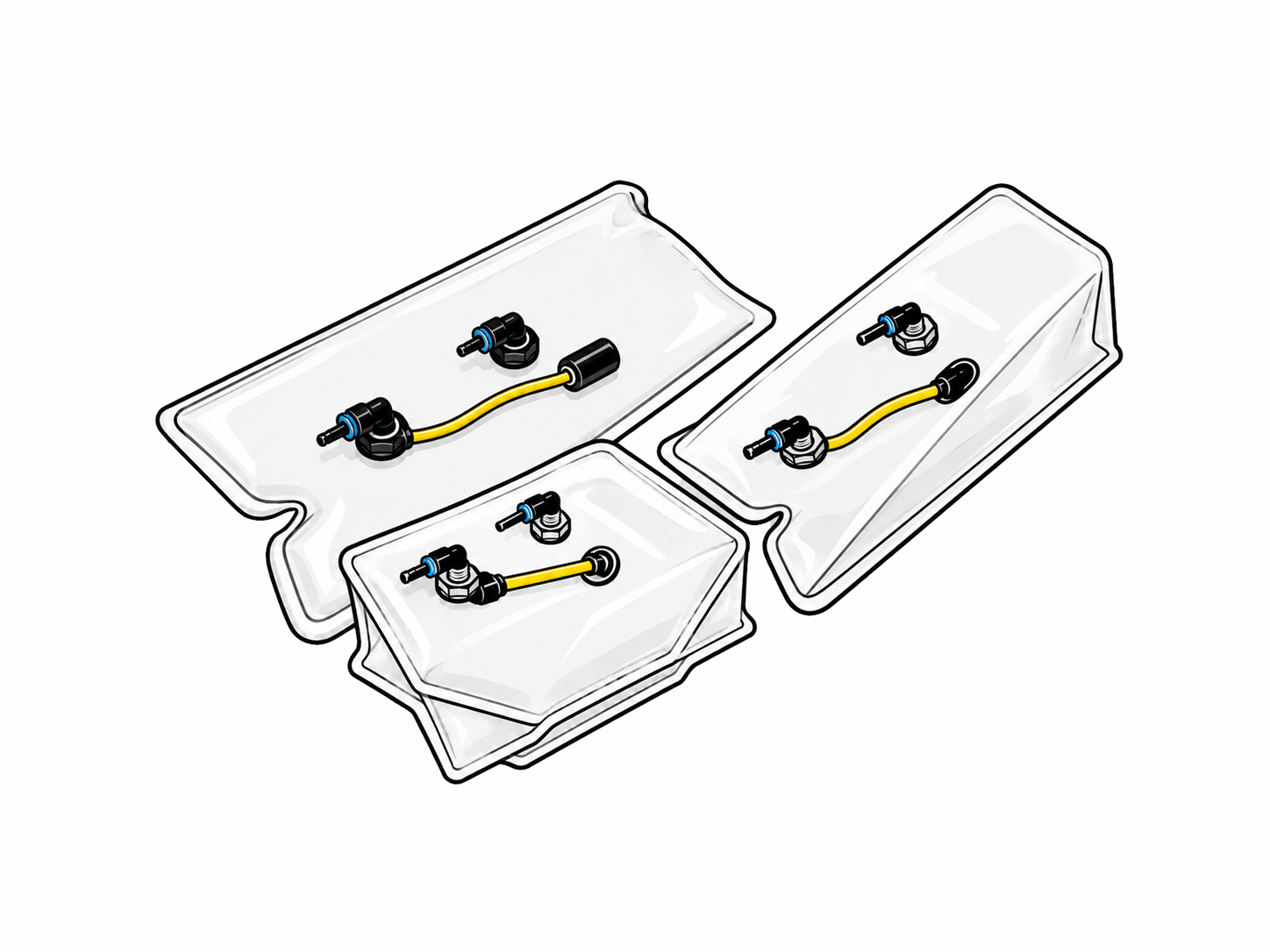

  • 1. Choosing the right bladder format

    Understand when to choose Pillow, 1SQ, 2SQ or Cylindrical formats depending on your required volume, available space and installation layout.

    See Standard Line Bladders

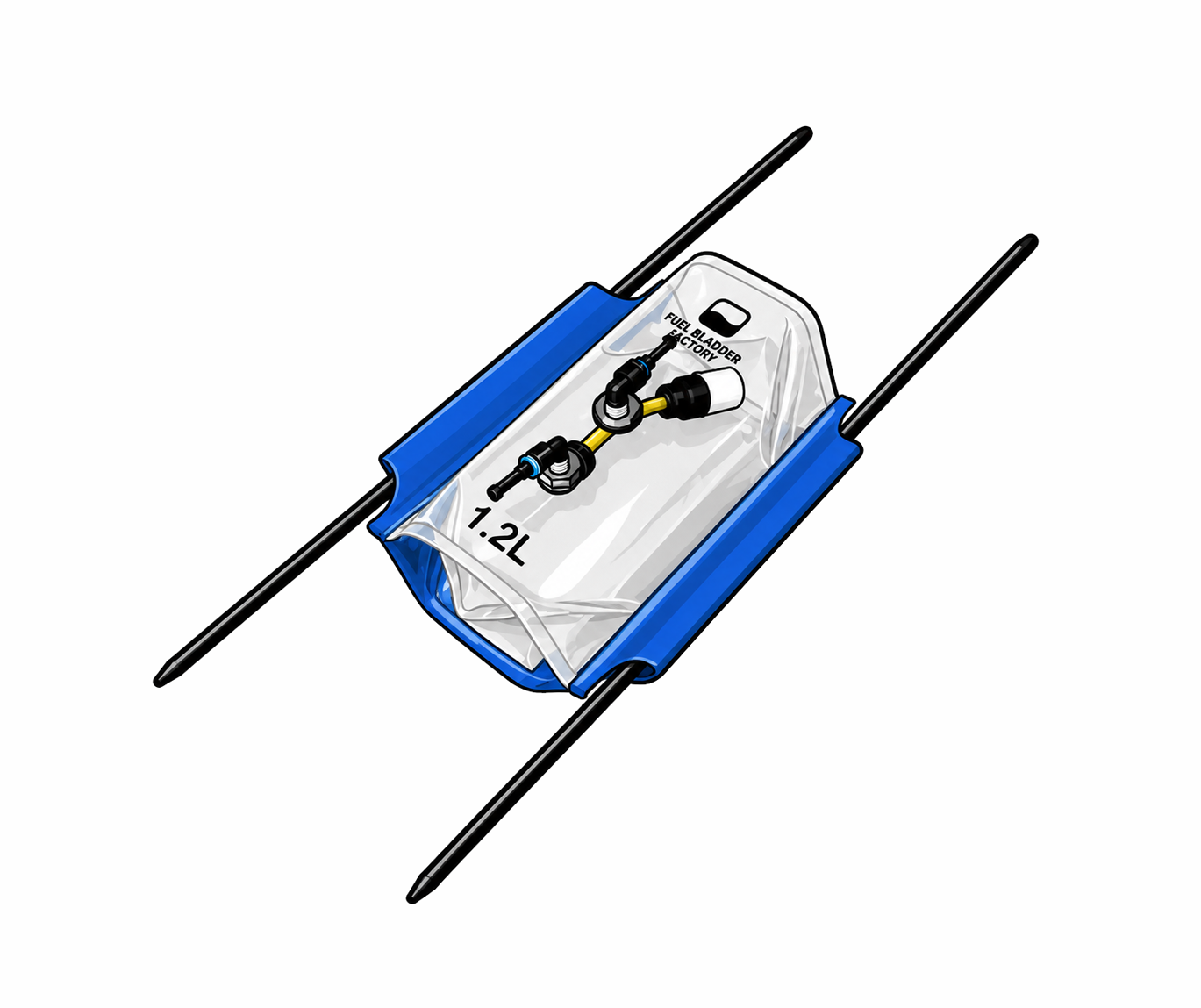

  • 2. Carbon tube fixation

    See how carbon tubes can help support and position compatible fuel bladders inside the aircraft structure.

    Fuel Bladder Accessories

  • 3. Pressure & safety notes

    Fuel bladders are not pressure vessels. Review basic safety notes before installation, filling or operation.

  • 4. Custom bladder requests

    Prepare the technical information needed to request a custom bladder, including volume, dimensions, fitting layout and fixation system.

    Custom Tank Configurator

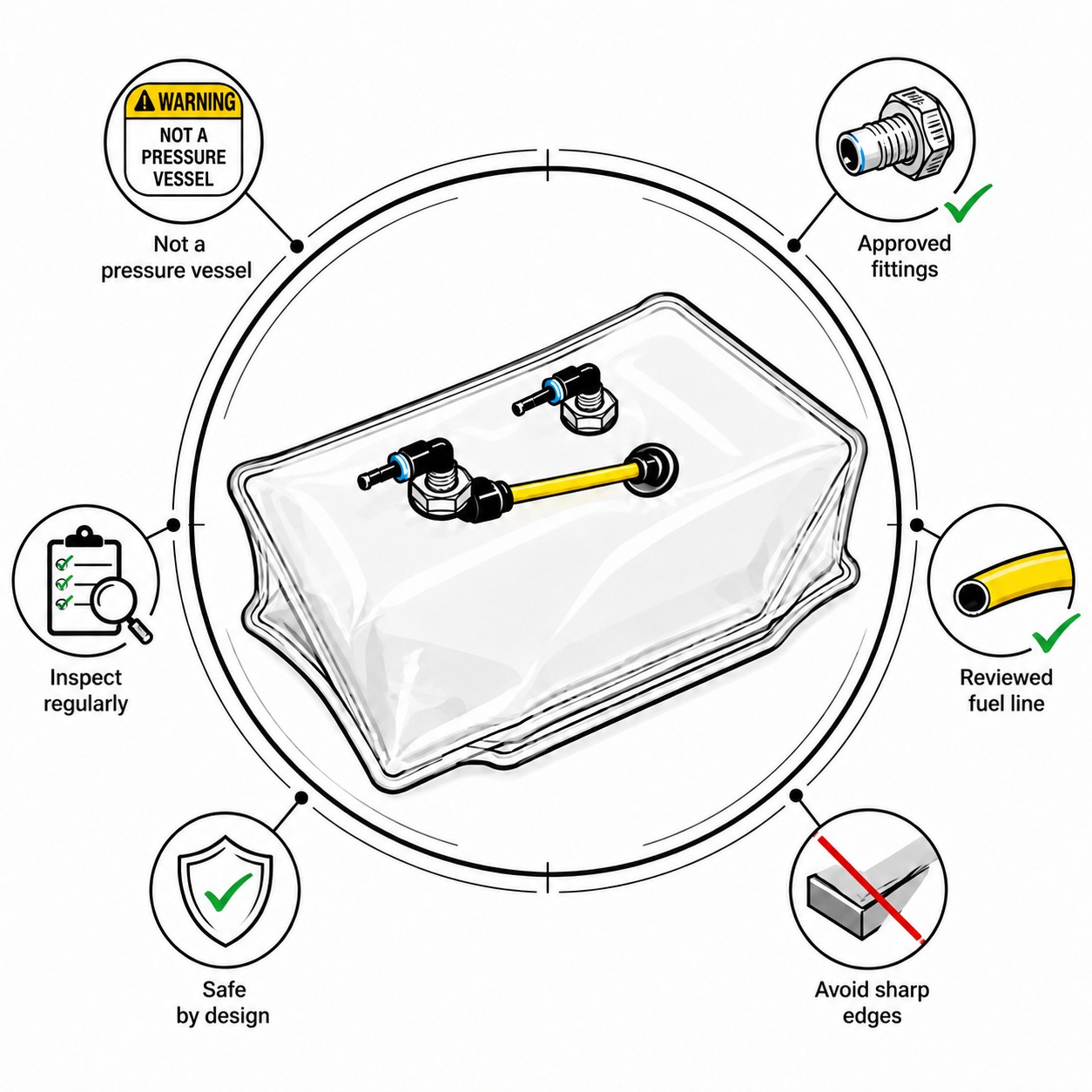

Safety notes

Fuel bladders are flexible fuel containers, not pressure vessels.

Before installation or operation, always check the bladder, fittings, fuel lines and fixation system to ensure everything is correctly positioned and free from stress, friction or sharp contact points.

  • Do not inflate or operate the bladder under pressure.
  • Avoid sharp edges, abrasive surfaces or excessive stress on fittings.
  • Check fuel lines, fittings and fixation before use.
  • Make sure the bladder is securely positioned inside the aircraft.
  • Use compatible fuels and components according to your setup.
  • Inspect the bladder regularly for visible wear or damage.

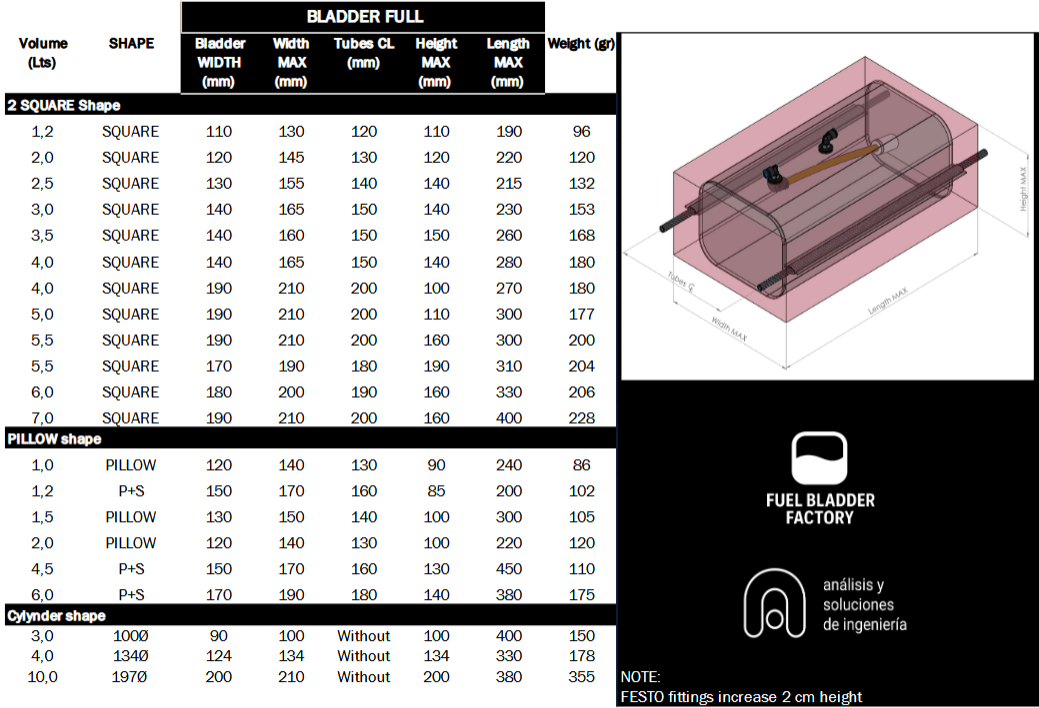

Check here for all sizes of our bladder tanks

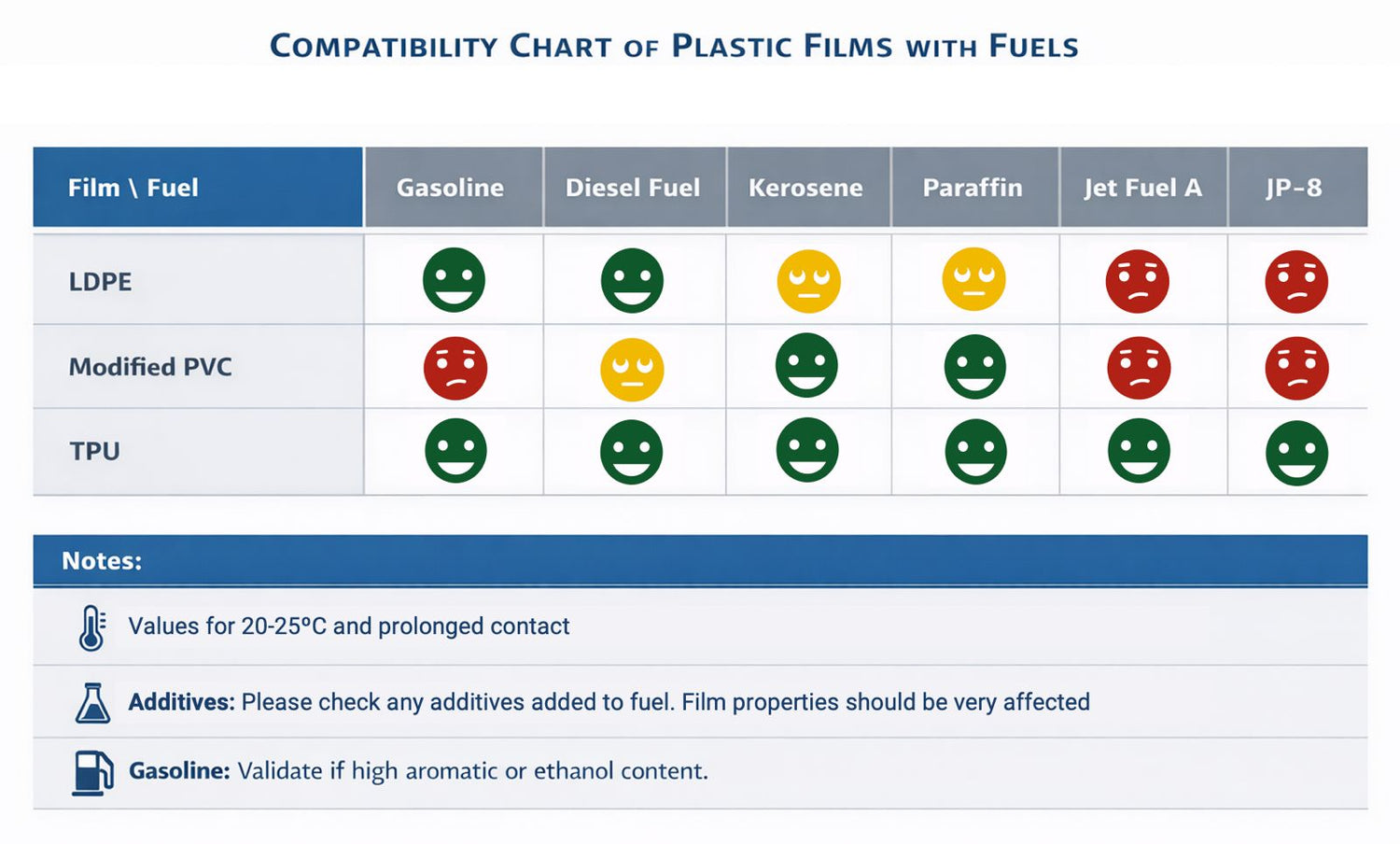

Check the compatibility of different plastics with fuel types.

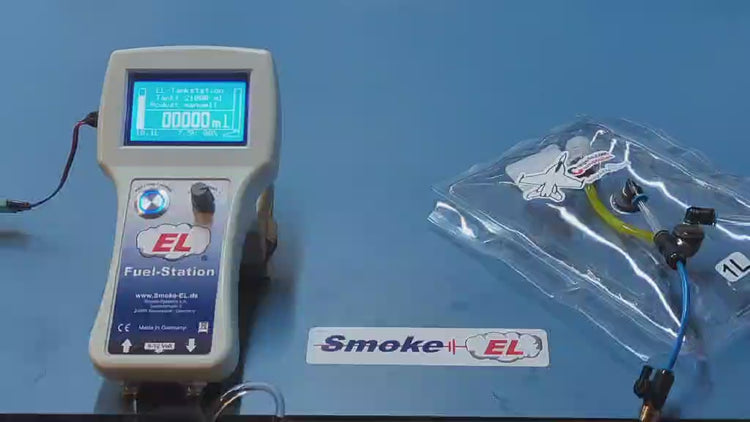

Observe the process of filling and emptying one of our tanks.

Watch one of our fuel bladder tank in action inside a HISPANO AVIACIÓN aircraft, performing extreme 3D aerobatic maneuvers and demonstrating the reliability required for the most demanding flight operations

Here’s one of our tanks, fully assembled and filled—ready to go!
