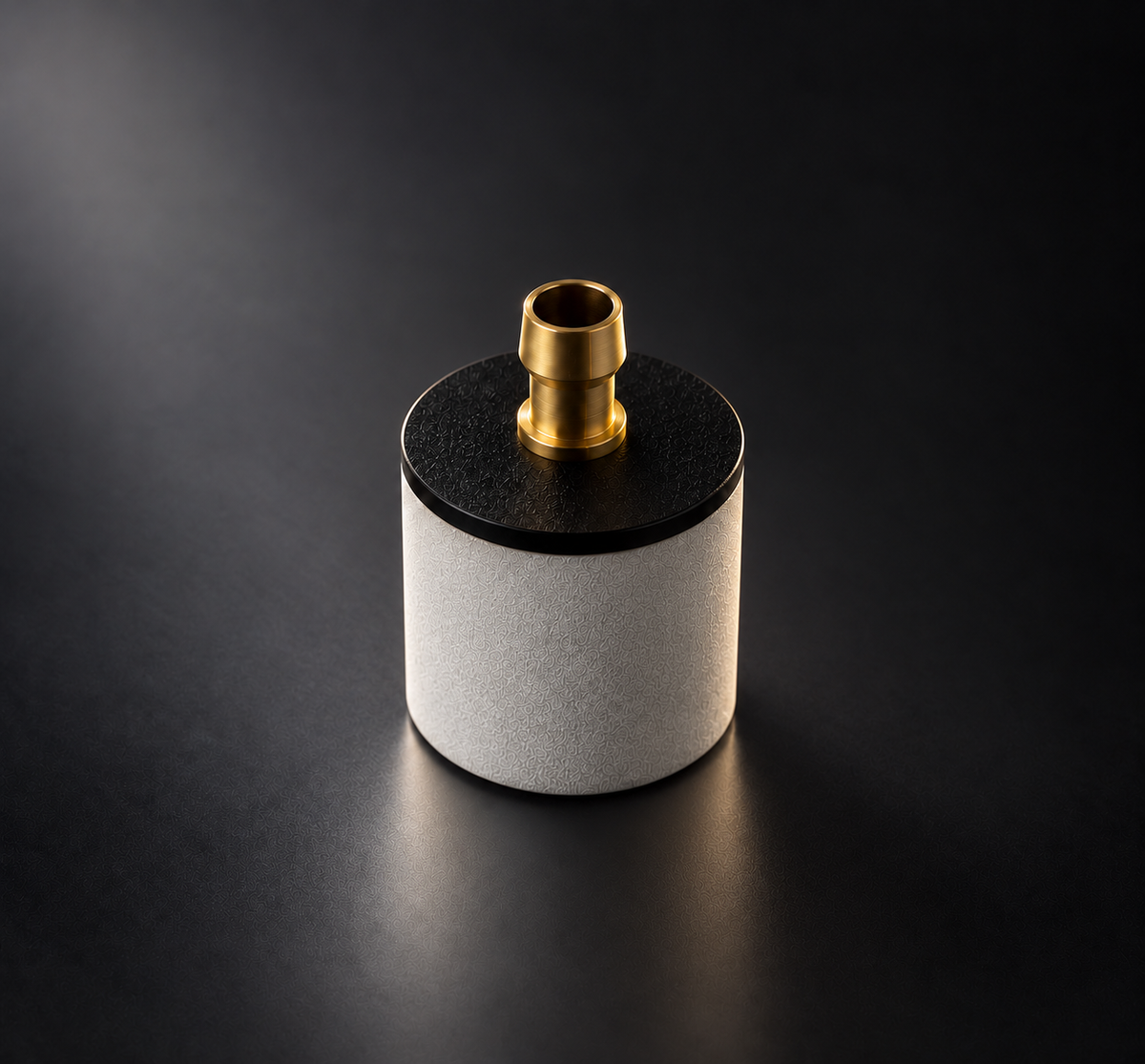

Filter SMALL with ballast ( 16 gr)

Compact weighted fuel pickup filter with 50-micron filtration, designed for UAVs, RC aircraft and small flexible fuel bladders.

Our Small Fuel Filter with Ballast combines efficient fuel filtration and a weighted pickup system in a compact, lightweight component.

Equipped with an integrated 16 g ballast, it helps keep the fuel pickup positioned near the lowest point of the tank, supporting consistent fuel delivery as the fuel level decreases.

The integrated 50-micron filter helps prevent particles and contaminants from entering the fuel supply line, protecting sensitive components such as fuel pumps and engines.

With its compact dimensions of just 19 mm diameter and 24 mm length, this filter is particularly suitable for small fuel tanks and flexible fuel bladders where installation space is limited.

Designed for use with 4,8 mm ID Tygon fuel tubing, it is compatible with a wide range of aviation and automotive fuels, including kerosene, gasoline, diesel, Jet A-1 and JP-8.

Key Features

• 50-micron fuel filtration to help protect fuel system components from particles and contaminants.
• 16 g integrated ballast to maintain the fuel pickup near the bottom of the tank.
• Compact design: only 19 mm diameter × 24 mm length.
• Dual functionality: fuel filtration and weighted pickup in a single component.
• 4,8 mm ID hose connection, designed for Tygon fuel tubing.
• Multi-fuel compatibility: kerosene, gasoline, diesel, Jet A-1 and JP-8.
• Ideal for small UAVs, RC aircraft, model turbines and compact fuel systems.

Technical Specifications

Applications

An ideal solution for compact fuel systems requiring both filtration and a weighted fuel pickup.

Its reduced size and 16 g ballast make it particularly suitable for smaller fuel bladders and UAV applications where space and weight are important design considerations.

Compact size, reliable filtration and weighted fuel pickup — all in one component.
